Technische Übersicht

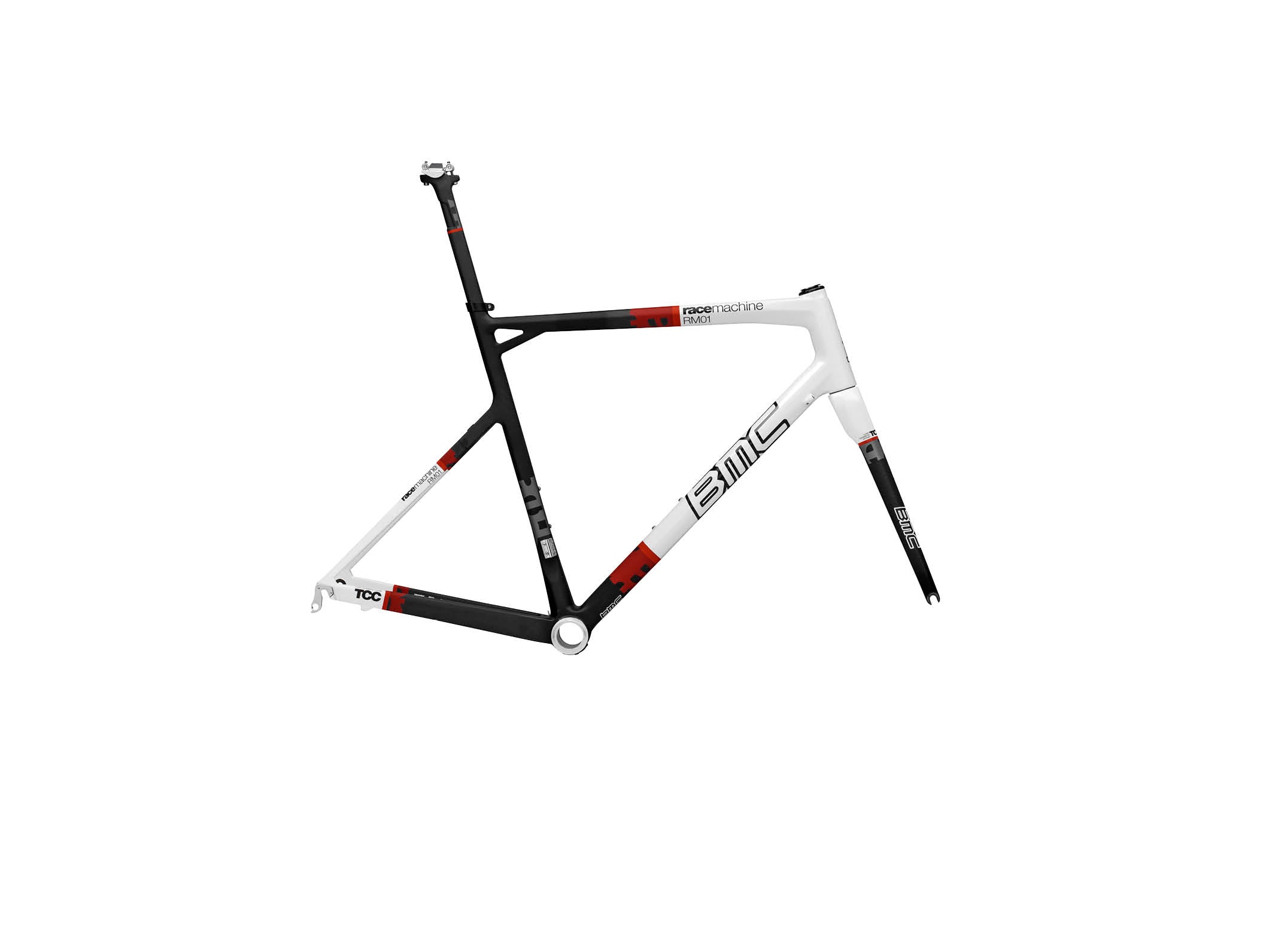

Rahmenset
Rahmen:
iSC | Carbon
Gabel:
BMC SE48 SL TP
Cockpit
Lenker:
Scor 18k
Vorbau:
Scor 18k
Sattelstütze:
Scor 18k
Sattel:
Scor Lady
Antrieb
Übersetzung:
2 x 10
Kurbel:
Shimano 105 | 50-34
Kassette:
Shimano 105 | 11-28
Umwerfer:
Shimano 105 | Braze-on
Schaltwerk:
Shimano 105
Schalthebel:
Shimano 105
Bremsen
Bremshebel:
Shimano 105
Räder
Felgen:
Alex | ALX440SL
Naben (V/H):
Alex | ALX440SL
Bereifung:
Continental | Ultra Race
Weitere Informationen
Produktsicherheitsverordnung (GPSR):
Sicherheitshinweise GPSR (EU)
Verantwortliche Person gemäss GPSR (EU)
| Size | 48 | 51 | 54 |
|---|---|---|---|
| Rider Height | < 166 | 166-174 | 172-180 |
| Reach | 369 | 381 | 388 |
| Stack | 508 | 515 | 543 |
| Bar Drop | |||
| Bar Reach | |||
| Bar Rise | |||
| Bar Sweep | |||
| Bar Width | 380 | 400 | 400 |
| Base Bar Drop Flat Cockpit | |||
| Base Bar Drop V-Cockpit | |||
| Base Bar Reach Flat Cockpit | |||
| Base Bar Reach V-Cockpit | |||
| BB Drop | 69 | 69 | 69 |
| BB Drop (SLACK) | |||
| BB Drop (STEEP) | |||
| BB Height (SLACK) | |||
| BB Height (STEEP) | |||
| Chainstay | |||
| Crank Length | 170 | 170 | 170 |
| LT | BB Drop (SLACK) | |||
| LT | BB Drop (STEEP) | |||
| LT | BB Height (SLACK) | |||
| LT | BB Height (STEEP) | |||
| LT | Chainstay | |||
| LT | Fork Length | |||
| LT | Fork Rake | |||
| LT | Frame Size | |||
| LT | Front Center (SLACK) | |||
| LT | Front Center (STEEP) | |||
| LT | Head Tube | |||
| LT | HT Angle (SLACK) | |||
| LT | HT Angle (STEEP) | |||
| LT | Reach (SLACK) | |||
| LT | Reach (STEEP) | |||
| LT | Rider Height | |||
| LT | Seat Tube | |||
| LT | ST Angle @750mm Saddle Height (SLACK) | |||
| LT | ST Angle @750mm Saddle Height (STEEP) | |||
| LT | ST Angle Actual (SLACK) | |||
| LT | ST Angle Actual (STEEP) | |||
| LT | ST Angle Effective (SLACK) | |||
| LT | ST Angle Effective (STEEP) | |||
| LT | Stack (SLACK) | |||
| LT | Stack (STEEP) | |||
| LT | Stand Over Height (80 in Front of BB) | |||
| LT | Stand Over Height (Lowest Point) | |||
| LT | Top Tube (SLACK) | |||
| LT | Top Tube (STEEP) | |||
| LT | Wheelbase (SLACK) | |||
| LT | Wheelbase (STEEP) | |||
| ST | BB Drop (SLACK) | |||
| ST | BB Drop (STEEP) | |||
| ST | BB Height (STACK) | |||
| ST | BB Height (STEEP) | |||
| ST | Chainstay | |||
| ST | Fork Length | |||
| ST | Fork Rake | |||
| ST | Frame Size | |||
| ST | Front Center (SLACK) | |||
| ST | Front Center (STEEP) | |||
| ST | Head Tube | |||
| ST | HT Angle (SLACK) | |||
| ST | HT Angle (STEEP) | |||
| ST | Reach (SLACK) | |||
| ST | Reach (STEEP) | |||
| ST | Rider Height | |||
| ST | Seat Tube | |||
| ST | ST Angle @750mm Saddle Height (SLACK) | |||
| ST | ST Angle @750mm Saddle Height (STEEP) | |||
| ST | ST Angle Actual (SLACK) | |||
| ST | ST Angle Actual (STEEP) | |||
| ST | ST Angle Effective (SLACK) | |||
| ST | ST Angle Effective (STEEP) | |||
| ST | Stack (SLACK) | |||
| ST | Stack (STEEP) | |||
| ST | Stand Over Height (80 in Front of BB) | |||
| ST | Stand Over Height (Lowest Point) | |||
| ST | Top Tube (SLACK) | |||
| ST | Top Tube (STEEP) | |||
| ST | Wheelbase (SLACK) | |||
| ST | Wheelbase (STEEP) | |||
| Fork Length | |||
| Fork Rake | |||
| Frame Size | |||
| Front Center | |||
| Front Center (SLACK) | |||
| Front Center (STEEP) | |||
| Head Tube | 115 | 120 | 145 |
| Head Tube Angle | 71 | 71.5 | 72.8 |
| HT Angle (SLACK) | |||
| HT Angle (STEEP) | |||
| Pad Reach Flat Cockpit | |||
| Pad Reach V-Cockpit | |||
| Pad Stack Flat Cockpit | |||
| Pad Stack V-Cockpit | |||
| Reach (SLACK) | |||
| Reach (STEEP) | |||
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | |||
| Seat Angle | 74 | 74 | 73.5 |
| Seat Tube | 440 | 455 | 480 |
| Seatpost Drop | |||
| Seatpost Length | |||
| Seatpost Offset | |||
| ST Angle @750mm Saddle Height (SLACK) | |||
| ST Angle @750mm Saddle Height (STEEP) | |||
| ST Angle Actual (SLACK) | |||
| ST Angle Actual (STEEP) | |||
| ST Angle Effective (SLACK) | |||
| ST Angle Effective (STEEP) | |||
| Stack (SLACK) | |||
| Stack (STEEP) | |||
| Stand Over Height (80 in Front of BB) | |||
| Stand Over Height (Lowest Point) | |||
| Standover Height | |||
| Stem Angle | |||
| Stem Length | |||
| Top Tube | 516 | 530 | 550 |
| Top Tube (SLACK) | |||
| Top Tube (STEEP) | |||
| Trail | |||
| Wheelbase | |||
| Wheelbase (SLACK) | |||
| Wheelbase (STEEP) |
