Technical Overview
Frameset

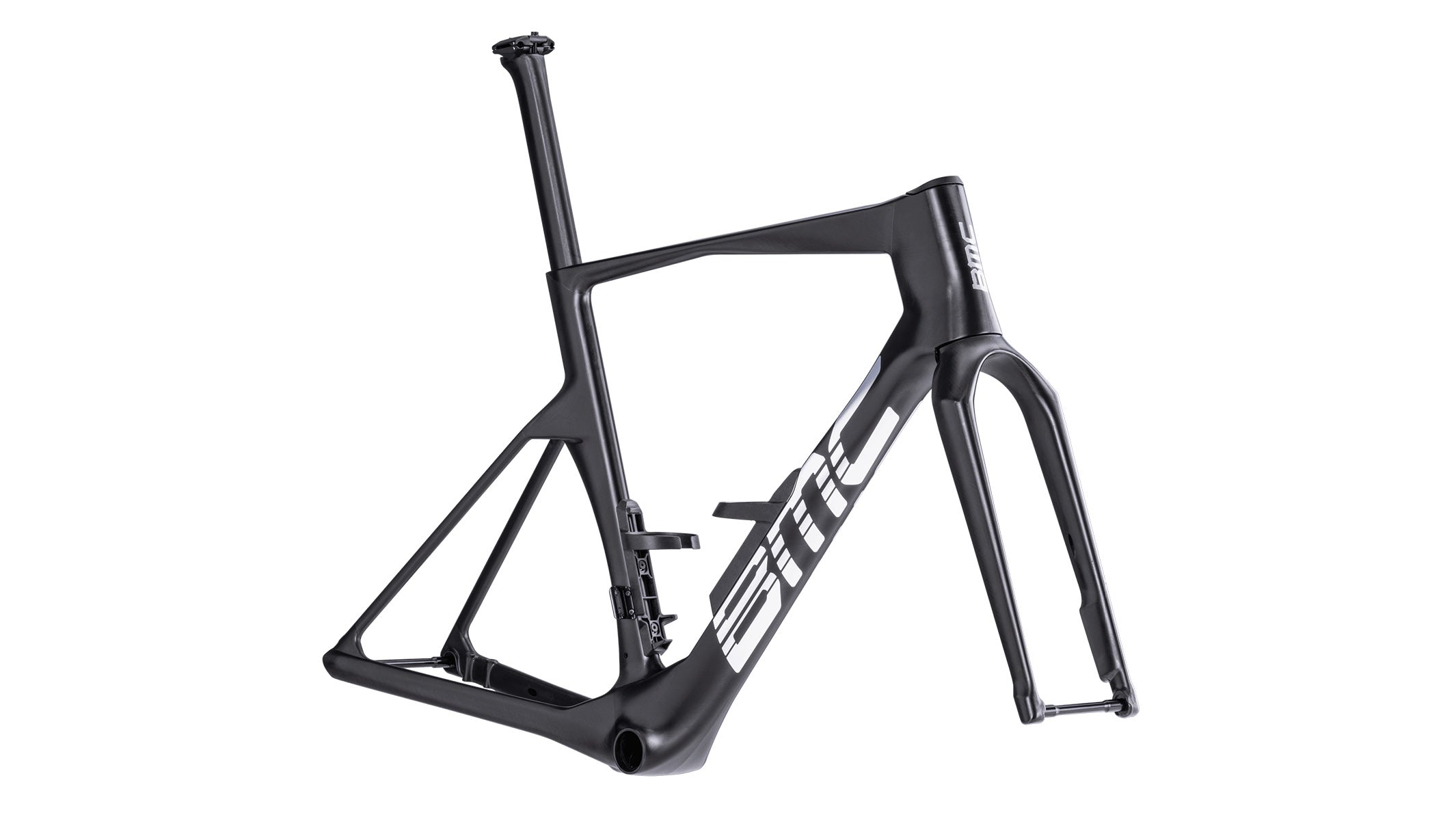

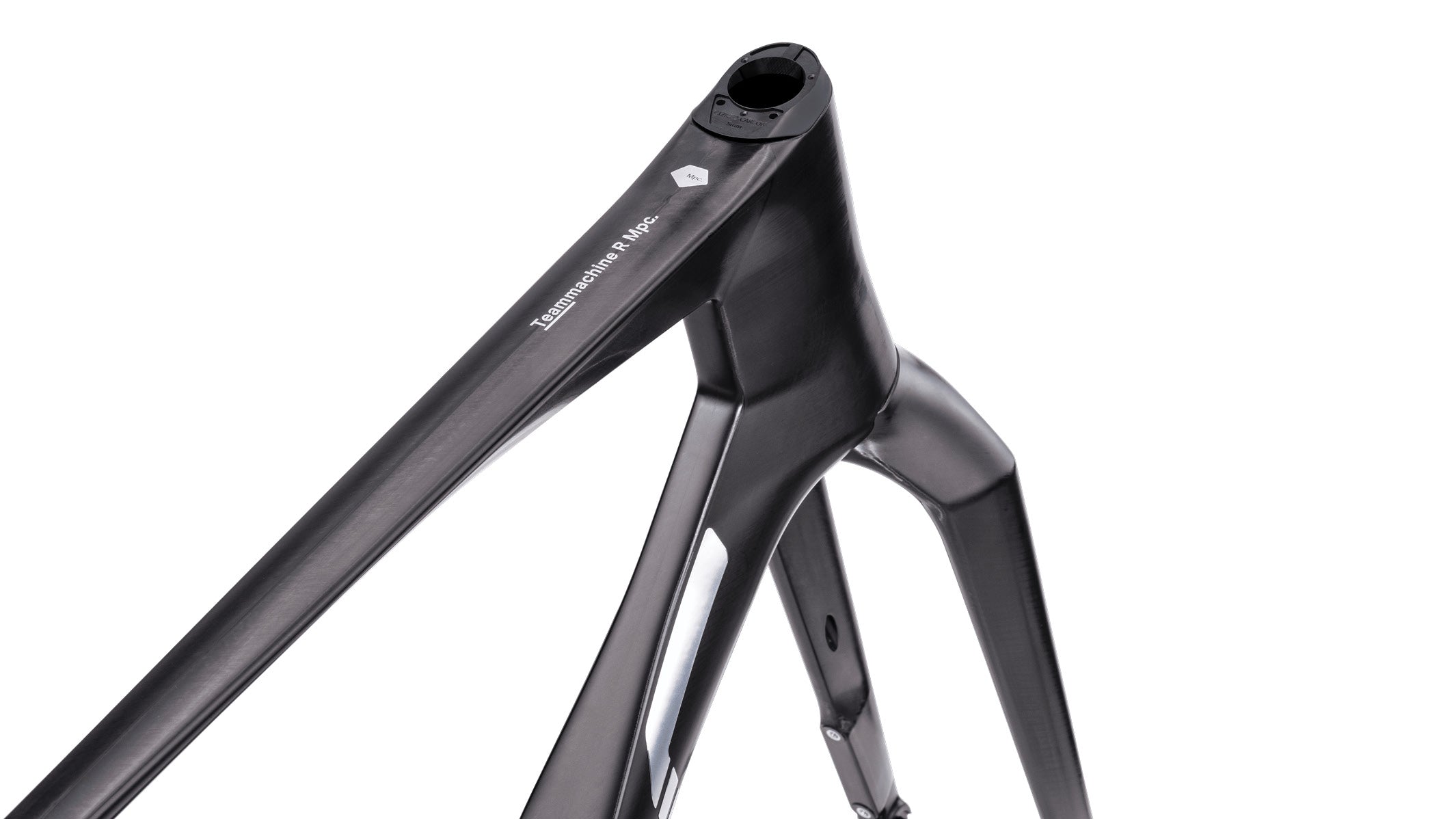

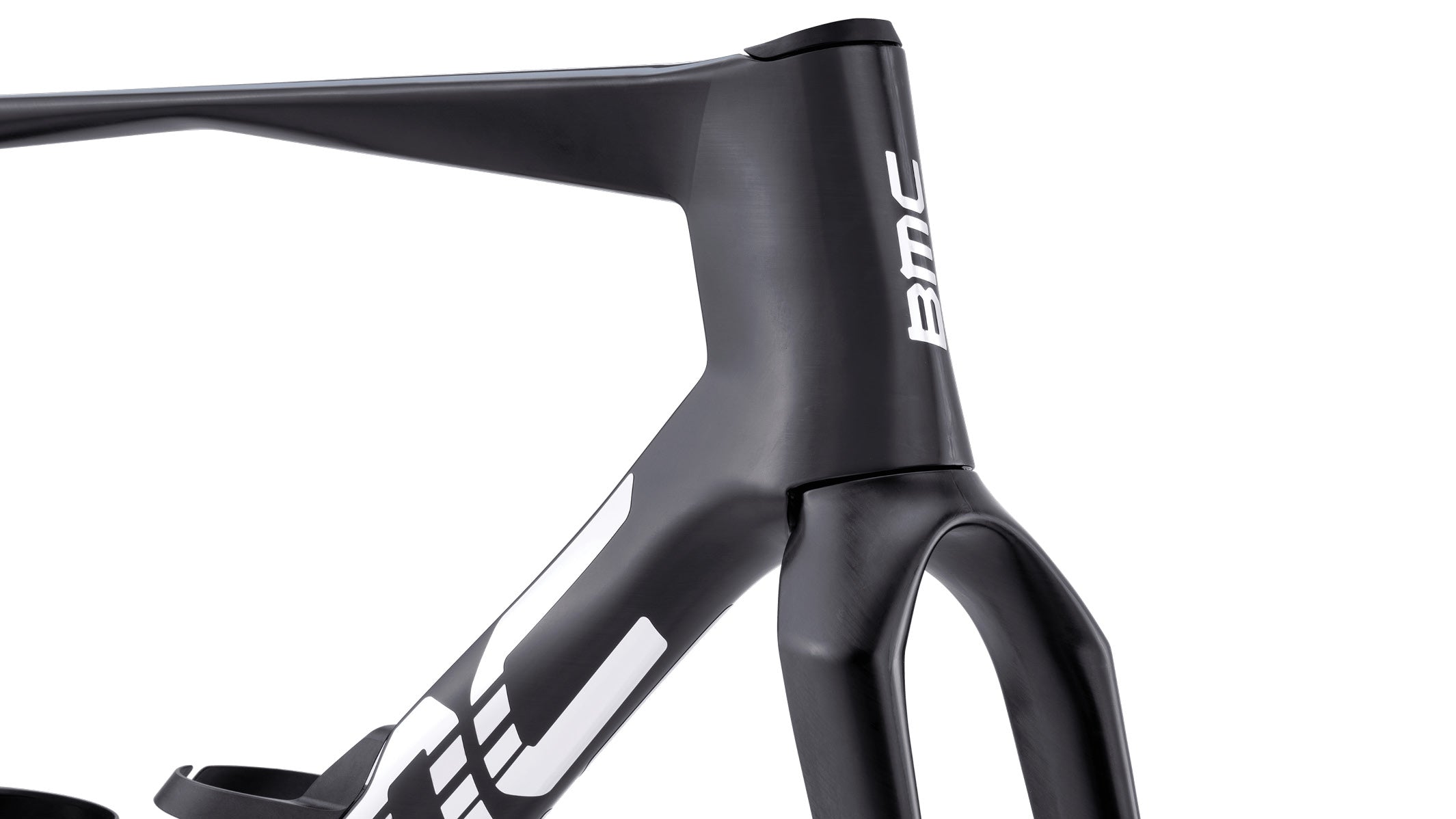

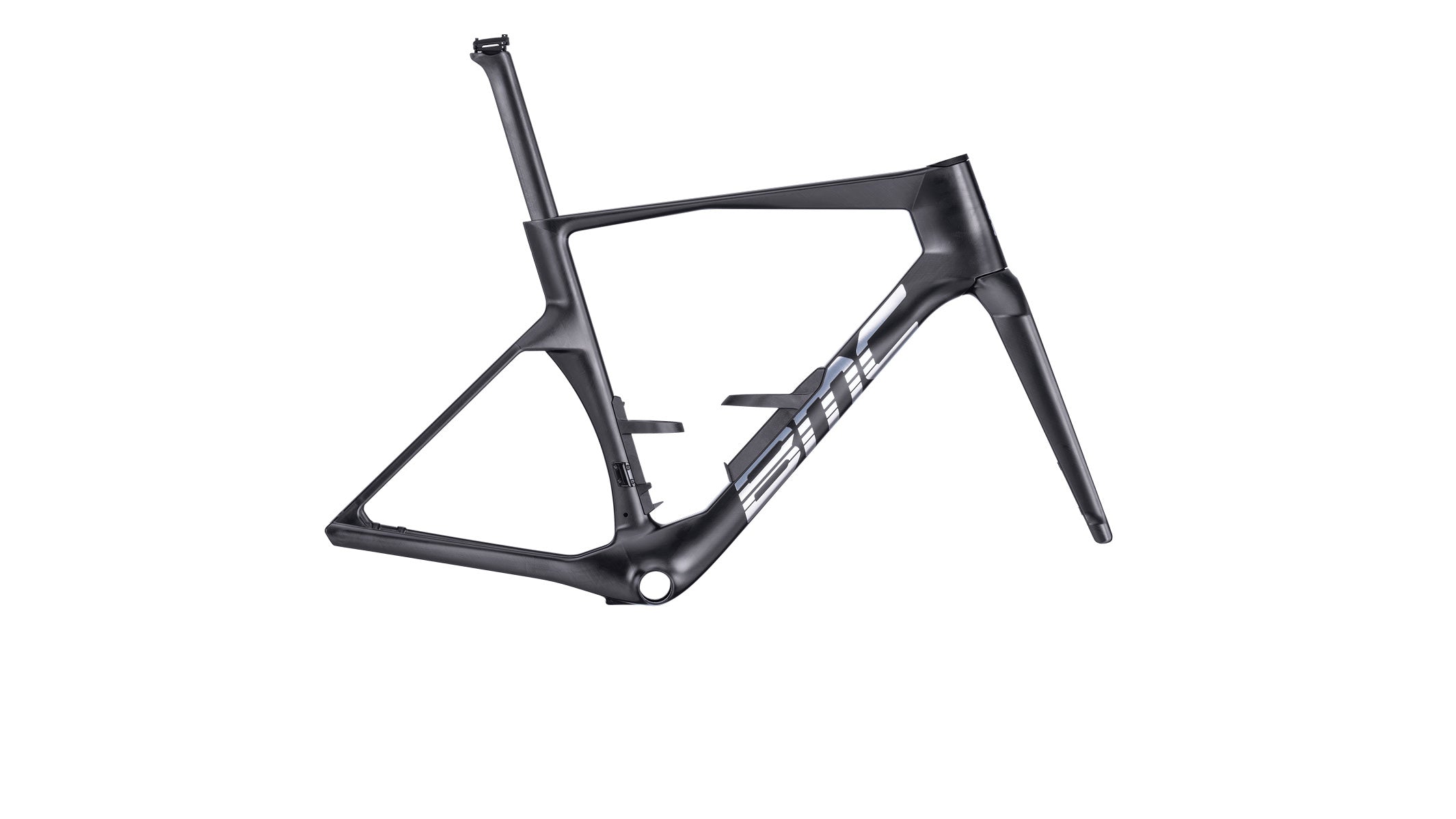

Frame:

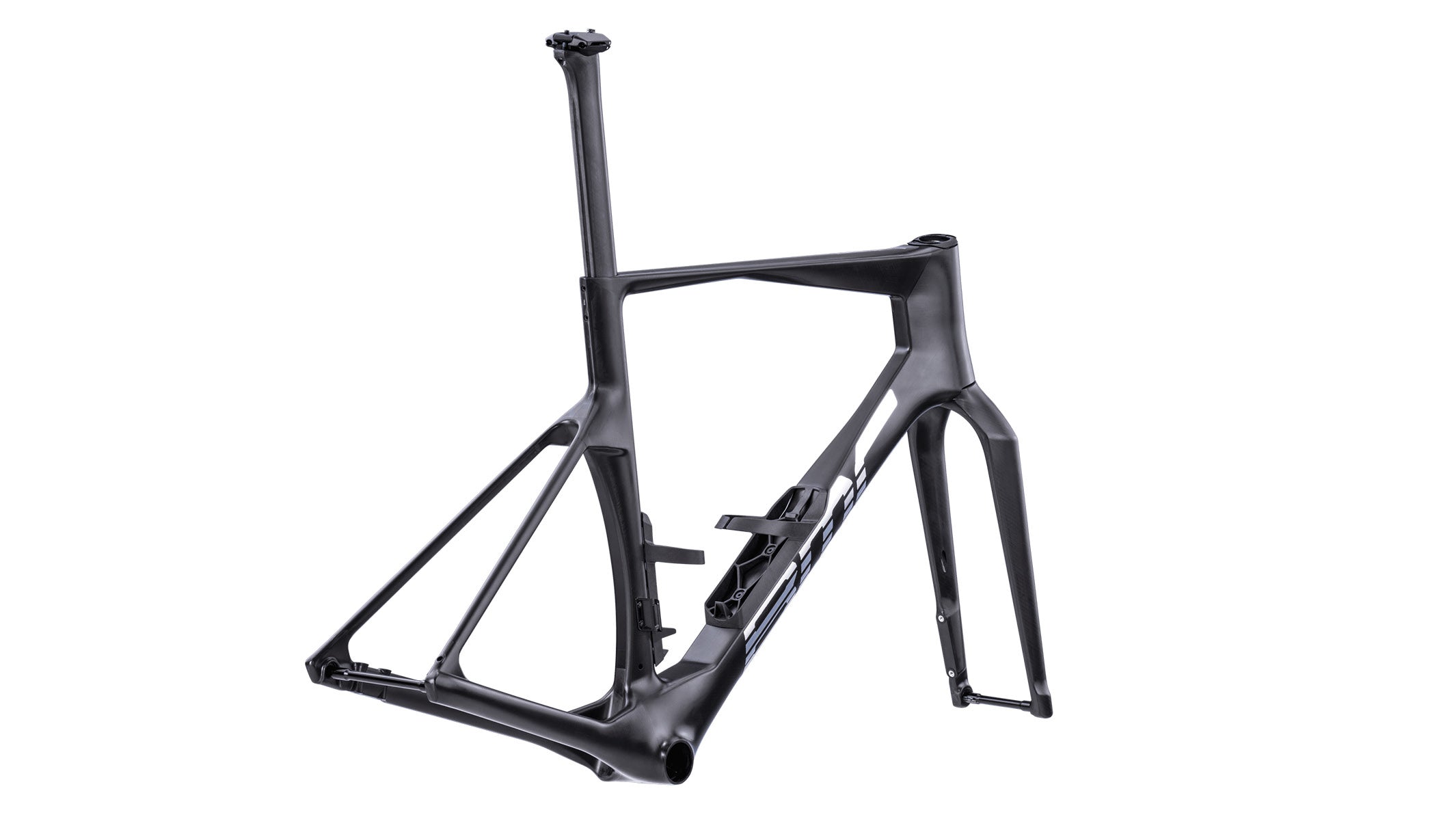

Teammachine R Mpc Premium Carbon with Aerocore Design | ICS Technology - Stealth Cable Routing | Integrated Aerocore Bottles Cages | Stealth Dropout Design | PF86 Bottom bracket | Flat mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R Mpc Premium Carbon | ICS Technology - Stealth Cable Routing | Stealth Dropout Design | Flat mount Disc | 12 x 100mm Thru-Axle
Seat
Seatpost:
Teammachine R Mpc Premium Carbon | 10mm Offset
Accessories
Additional Information
Tire Clearance:
30mm
Weight without Pedals:
Frame 810g | Fork 390g | Seatpost 150g
ASTM Classification:
Level 1
System Weight Limit:
110kg
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | <166 | 166 - 174 | 172 - 180 | 178-186 | 184-192 | >190 |
Reach | 368 | 378 | 387 | 393 | 402 | 409 |
Stack | 504 | 528 | 548 | 563 | 582 | 608 |
BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
Fork Length | 367 | 367 | 367 | 367 | 367 | 367 |
Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
Head Tube | 108 | 133 | 149 | 165 | 185 | 211 |
Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
Seat Angle | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
Seat Tube | 418 | 463 | 499 | 519 | 541 | 570 |
Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
Top Tube | 522 | 532 | 552 | 562 | 582 | 598 |
Trail | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase | 968 | 986 | 989 | 999 | 1015 | 1030 |
Pick your own Cockpit
ICS Carbon Aero
ICS Carbon Aero features a progressive aerodynamic shaping with a reduced frontal section to match the drag-reducing design of our performance frames.
ICS Carbon Evo
Allying performance with usability, the ICS Carbon Evo Cockpit is engineered at the sweet spot for performance-oriented riders.
ICS Carbon
ICS Carbon, the first one-piece cockpit in the BMC range with an incredibly low weight, high stiffness with superior performance and aesthetics.
