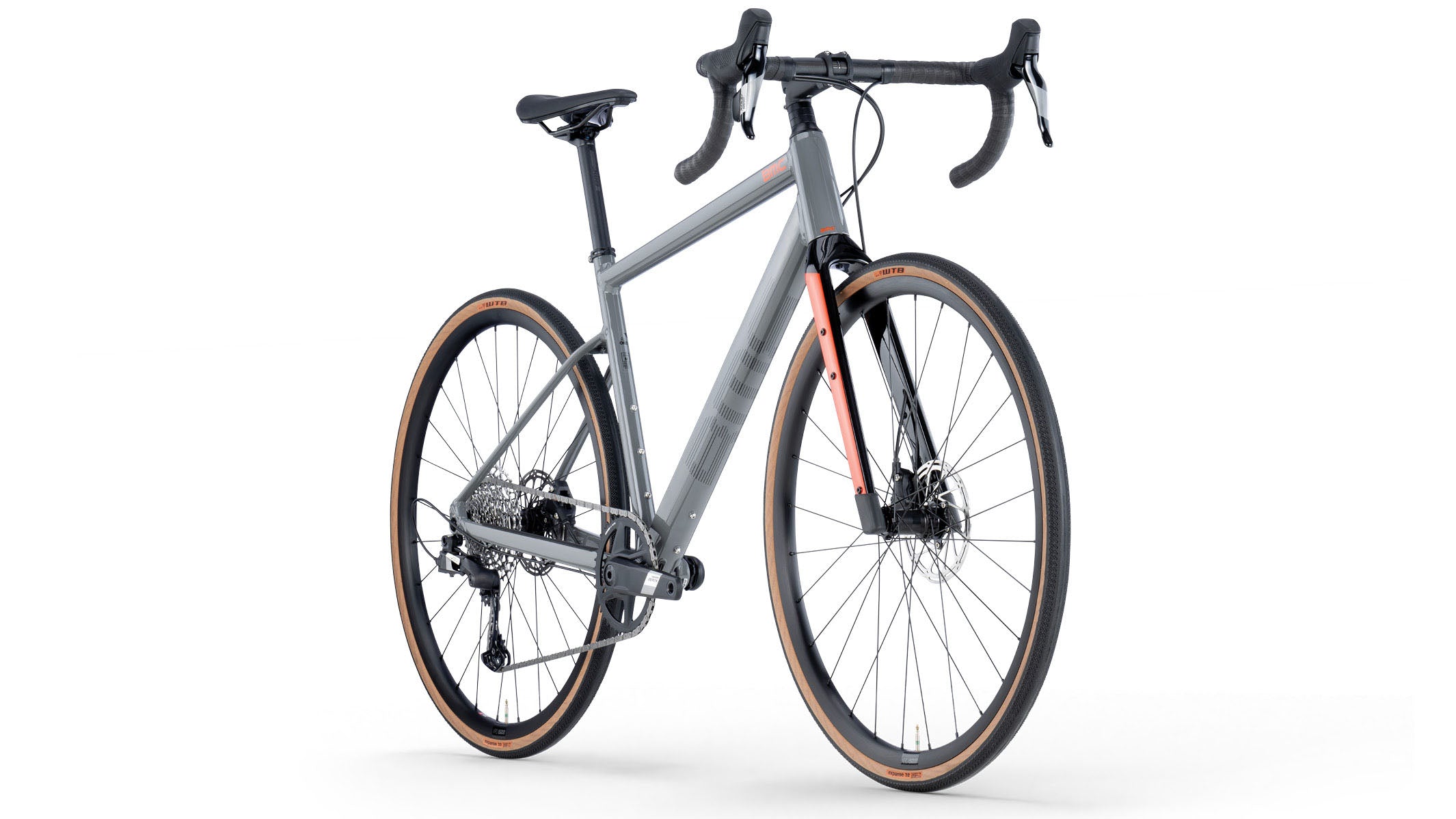

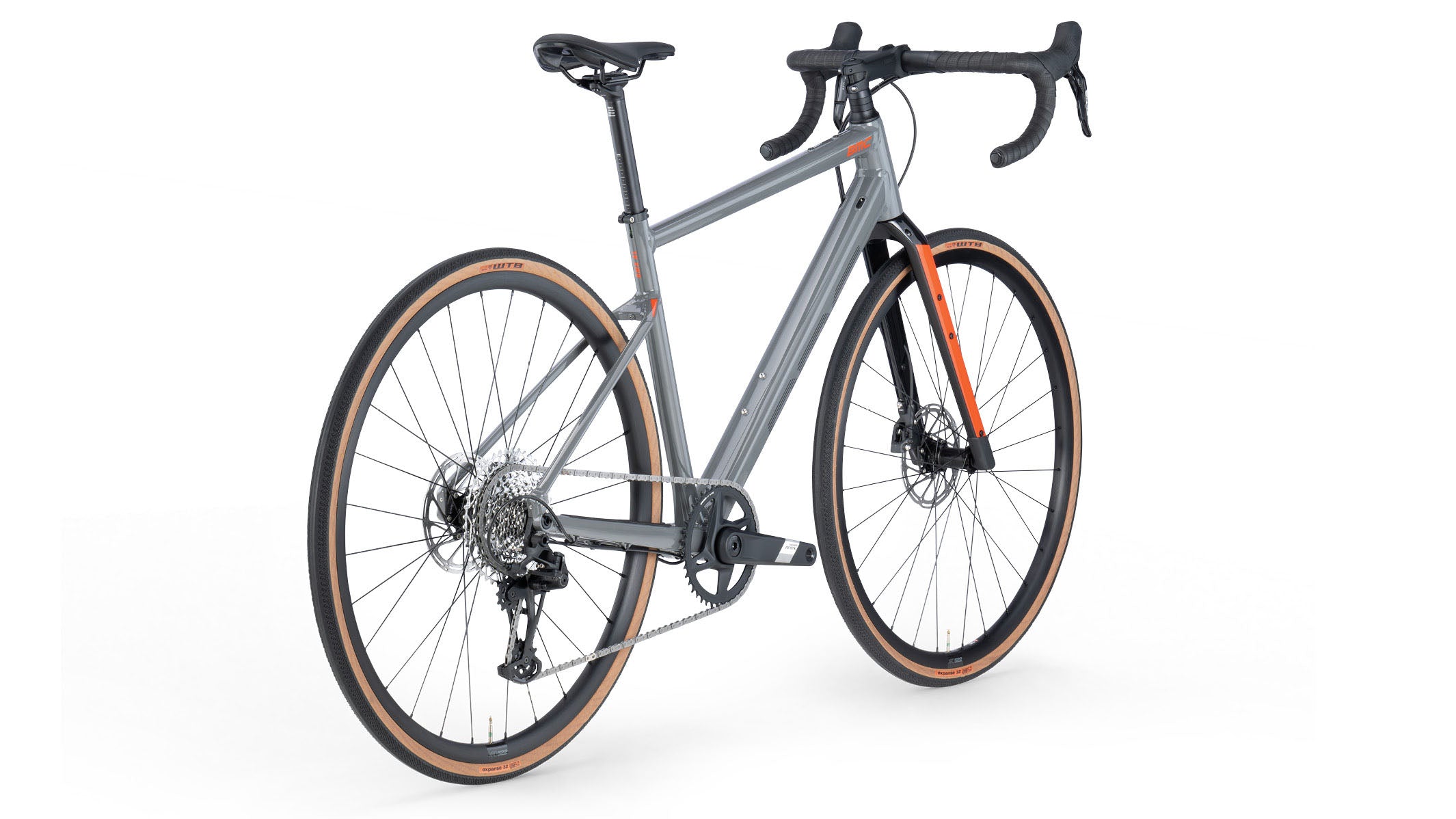

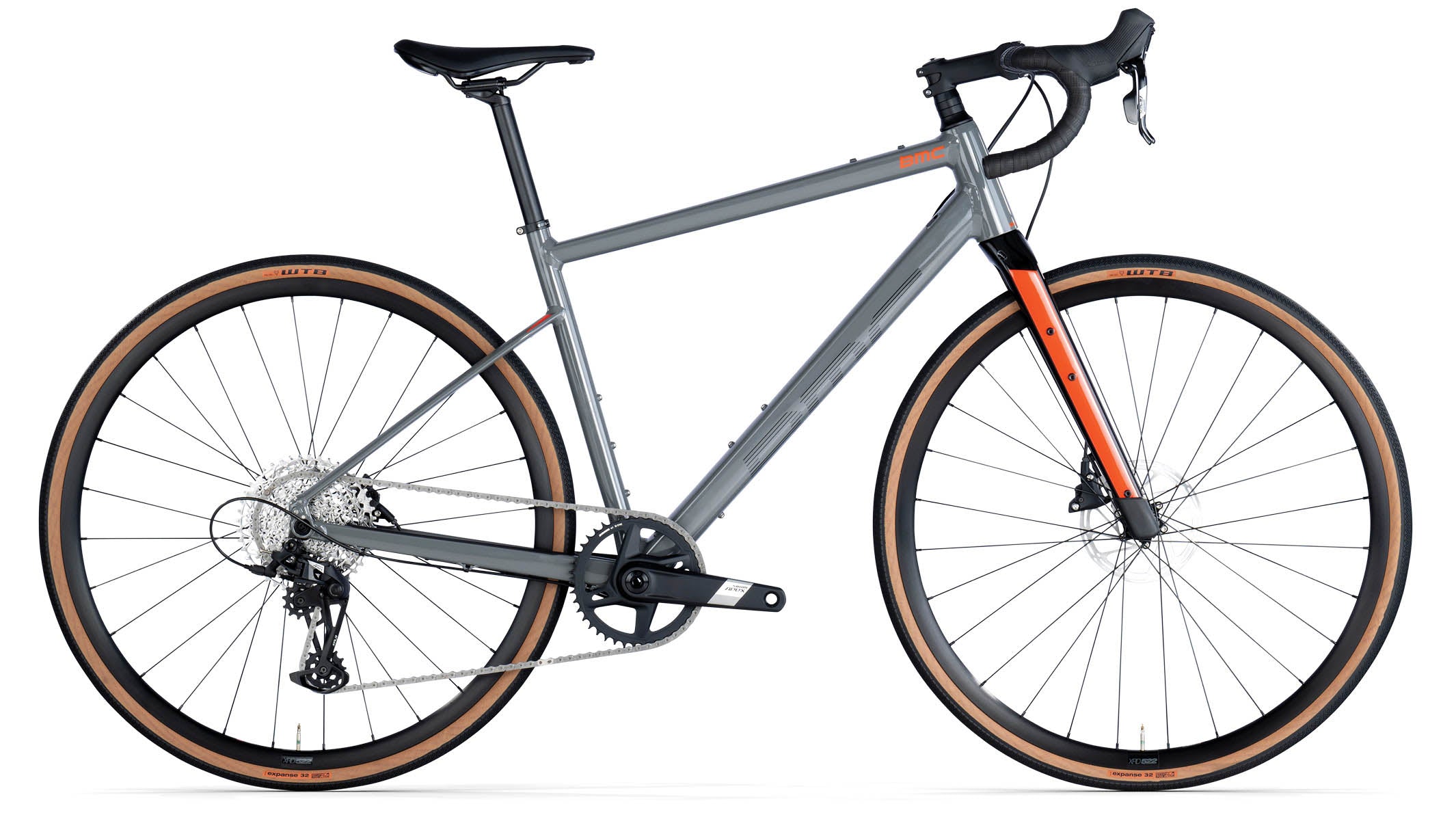

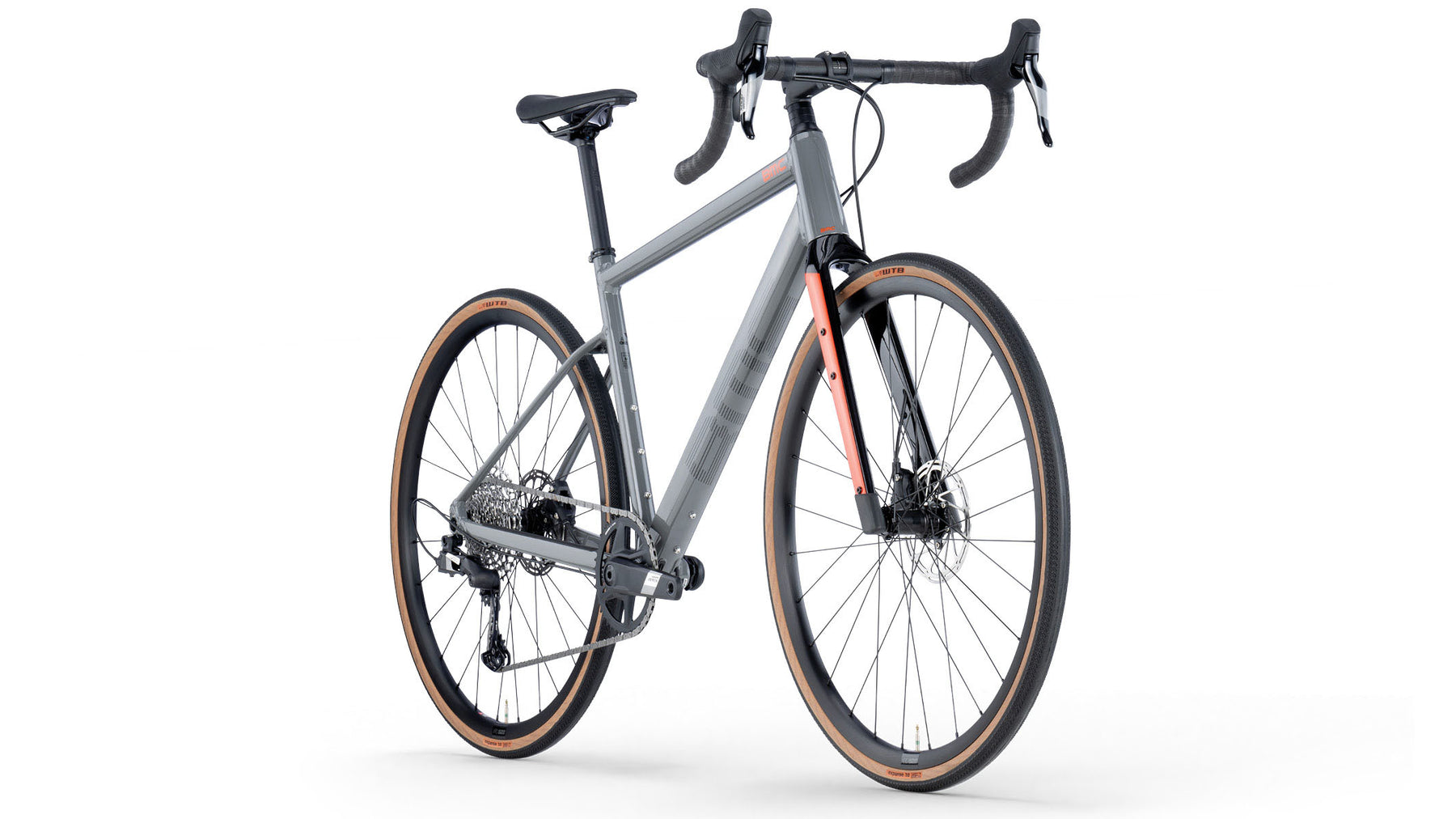

Roadmachine AL X ONE

GREY / ORANGE

SRAM APEX
XRD-522 Wheelset
Fender, Rack and Cargo Mounts

Regular priceUSD 3,099.00
USD /
Tax included.

SKU: 30004973
Size

Roadmachine AL X ONE

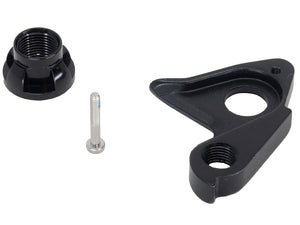

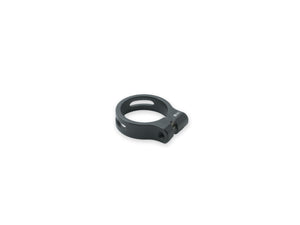

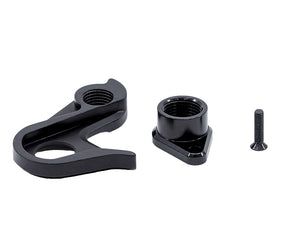

Parts & Accessories

  • Shipped to your local bike shop
The Roadmachine AL X ONE features a robust frameset that handles all the rough stuff. The Premium Aluminium frame and carbon fork were designed using TCC Gravel technology, with Gravel+ geometry. They feature fender, rack and cargo mounts, hub dynamo cable routing, a round seatpost and SRAM APEX components and 32mm WTB tires on XRD-522 wheels.

Technical Overview

Frameset

Frame:
Roadmachine X Premium Aluminium with Tuned Compliance Concept Gravel | Gravel+ Geometry | Internal Cable Routing | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Roadmachine X Carbon with Tuned Compliance Concept Gravel | Internal BRake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | Side Mounts

Cockpit

Stem:
BMC RSM 01

Handlebar:
BMC RAB 03 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
BMC RSP 03

Saddle:
Selle Royal

Drivetrain

Crankset:
SRAM Apex 1 DUB WIDE

Chainrings:
SRAM Apexrings

Cassette:
SRAM Apex XPLR

Cassette Size:
11-44T

Chain:
SRAM Apex

Rear Derailleur:
SRAM Apex XPLR

Shifters:
SRAM Apex

Gears:
1 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Apex

Rotors:
SRAM Centerline | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
XRD-522 | Tubeless Ready | 25 mm

Hubs (F/R):
XRD-522

Tires:
WTB Expanse | 32mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
45mm

ASTM Classification:
Level 2

System Weight Limit:
120kg

Size XS S M L XL
Rider Height < 165 162 - 172 170 - 182 180 - 192 >190
Reach 390 400 410 420 430
Stack 525 550 580 610 640
Bar Drop 125 125 125 125 125
Bar Reach 70 70 70 70 70
Bar Width 400 420 420 420 440
BB Drop 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175
Fork Length 410 410 410 410 410
Fork Rake 45 45 45 45 45
Front Center 608 626 647 668 689
Head Tube 92 118 150 182 214
Head Tube Angle 70 70 70 70 70
Rear Center 430 430 430 430 430
Seat Angle 74 74 74 74 74
Seat Tube 430 445 475 505 540
Seatpost Length 350 350 350 350 350
Seatpost Offset 15 15 15 15 15
Standover Height 720 738 768 797 830
Stem Angle ±8 ±8 ±8 ±8 ±8
Stem Length 90 90 100 110 110
Top Tube 540 558 576 595 614
Trail 78 78 78 78 78
Wheelbase 1028 1047 1068 1089 1110
