Aperçu technique
Kit cadre
Cadre:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Seatpost Clamp | Flat Mount Disc | 12 x 142mm Thru-Axle
Fourche:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology stealth cable routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) 45mm offset (Size 54-61)
Cockpit
Cintre:
ICS Carbon | One-Piece Full Carbon Cockpit
Seat
Tige de Selle:

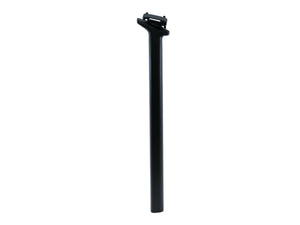

Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset
Selle:
Fizik Argo Tempo R1 | 150mm
Transmission
Pédalier:
SHIMANO Dura Ace FC-R9200
Plateaux:
50-34T
Capteur de puissance :
Cassette:
SHIMANO Dura Ace CS-R9200
Taille de cassette:
11-30T
Chaîne:
SHIMANO CN-M9100
Dérailleur Avant:
SHIMANO Dura Ace Di2 FD-R9250
Dérailleur Arrière:
SHIMANO Dura Ace Di2 RD-R9250
Leviers de Vitesses:
SHIMANO Dura Ace Di2 ST-R9270
Vitesses:
2 x 12
Boîtier de pédalier:
PF86 Bottom Bracket
Freins
Leviers de Frein / Étriers:
SHIMANO Dura Ace BR-R9270
Disques:
SHIMANO RT-MT900
Largeur de Pedalier:
160 / 140mm
Roues
Jantes:
DT Swiss ERC 1100 DICUT | 45mm
Moyeux:
DT Swiss 180 Straightpull | Ratchet EXP 36 | SINC Ceramic Bearings
Pneus:
Vittoria Corsa Control | 28mm
Informations supplémentaires
Espace pour les pneus:
33mm measured tire
Classification ASTM:
Level 1
Limite de poids du système:
110kg
Règlement relatif à la sécurité générale des produits (GPSR):
Consignes de sécurité GPSR (UE)
Personne responsable conformément au GPSR (UE)
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 374 | 382 | 386 | 390 | 394 | 398 |
| Stack | 516 | 541 | 562 | 586 | 610 | 644 |
| Bar Drop | 127 | 127 | 127 | 127 | 127 | 127 |
| Bar Reach | 67 | 67 | 67 | 67 | 67 | 67 |
| Bar Rise | ||||||
| Bar Sweep | ||||||
| Bar Width | 400 | 420 | 420 | 420 | 420 | 420 |
| Base Bar Drop Flat Cockpit | ||||||
| Base Bar Drop V-Cockpit | ||||||
| Base Bar Reach Flat Cockpit | ||||||
| Base Bar Reach V-Cockpit | ||||||
| BB Drop | 71 | 71 | 71 | 71 | 71 | 71 |
| BB Drop (SLACK) | ||||||
| BB Drop (STEEP) | ||||||
| BB Height (SLACK) | ||||||
| BB Height (STEEP) | ||||||
| Chainstay | ||||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||||
| LT | BB Drop (STEEP) | ||||||
| LT | BB Height (SLACK) | ||||||
| LT | BB Height (STEEP) | ||||||
| LT | Chainstay | ||||||
| LT | Fork Length | ||||||
| LT | Fork Rake | ||||||
| LT | Frame Size | ||||||
| LT | Front Center (SLACK) | ||||||
| LT | Front Center (STEEP) | ||||||
| LT | Head Tube | ||||||
| LT | HT Angle (SLACK) | ||||||
| LT | HT Angle (STEEP) | ||||||
| LT | Reach (SLACK) | ||||||
| LT | Reach (STEEP) | ||||||
| LT | Rider Height | ||||||
| LT | Seat Tube | ||||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||||
| LT | ST Angle Actual (SLACK) | ||||||
| LT | ST Angle Actual (STEEP) | ||||||
| LT | ST Angle Effective (SLACK) | ||||||
| LT | ST Angle Effective (STEEP) | ||||||
| LT | Stack (SLACK) | ||||||
| LT | Stack (STEEP) | ||||||
| LT | Stand Over Height (80 in Front of BB) | ||||||
| LT | Stand Over Height (Lowest Point) | ||||||
| LT | Top Tube (SLACK) | ||||||
| LT | Top Tube (STEEP) | ||||||
| LT | Wheelbase (SLACK) | ||||||
| LT | Wheelbase (STEEP) | ||||||
| ST | BB Drop (SLACK) | ||||||
| ST | BB Drop (STEEP) | ||||||
| ST | BB Height (STACK) | ||||||
| ST | BB Height (STEEP) | ||||||
| ST | Chainstay | ||||||
| ST | Fork Length | ||||||
| ST | Fork Rake | ||||||
| ST | Frame Size | ||||||
| ST | Front Center (SLACK) | ||||||
| ST | Front Center (STEEP) | ||||||
| ST | Head Tube | ||||||
| ST | HT Angle (SLACK) | ||||||
| ST | HT Angle (STEEP) | ||||||
| ST | Reach (SLACK) | ||||||
| ST | Reach (STEEP) | ||||||
| ST | Rider Height | ||||||
| ST | Seat Tube | ||||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST | ST Angle Actual (SLACK) | ||||||
| ST | ST Angle Actual (STEEP) | ||||||
| ST | ST Angle Effective (SLACK) | ||||||
| ST | ST Angle Effective (STEEP) | ||||||
| ST | Stack (SLACK) | ||||||
| ST | Stack (STEEP) | ||||||
| ST | Stand Over Height (80 in Front of BB) | ||||||
| ST | Stand Over Height (Lowest Point) | ||||||
| ST | Top Tube (SLACK) | ||||||
| ST | Top Tube (STEEP) | ||||||
| ST | Wheelbase (SLACK) | ||||||
| ST | Wheelbase (STEEP) | ||||||
| Fork Length | 375 | 375 | 375 | 375 | 375 | 375 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Frame Size | ||||||
| Front Center | 583 | 599 | 597 | 609 | 621 | 635 |
| Front Center (SLACK) | ||||||
| Front Center (STEEP) | ||||||
| Head Tube | 112 | 139 | 156 | 181 | 206 | 242 |
| Head Tube Angle | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
| HT Angle (SLACK) | ||||||
| HT Angle (STEEP) | ||||||
| Pad Reach Flat Cockpit | ||||||
| Pad Reach V-Cockpit | ||||||
| Pad Stack Flat Cockpit | ||||||
| Pad Stack V-Cockpit | ||||||
| Reach (SLACK) | ||||||
| Reach (STEEP) | ||||||
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Saddle Height Range | ||||||
| Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube | 420 | 457 | 500 | 522 | 539 | 573 |
| Seatpost Drop | ||||||
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 430 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST Angle Actual (SLACK) | ||||||
| ST Angle Actual (STEEP) | ||||||
| ST Angle Effective (SLACK) | ||||||
| ST Angle Effective (STEEP) | ||||||
| Stack (SLACK) | ||||||
| Stack (STEEP) | ||||||
| Stand Over Height (80 in Front of BB) | ||||||
| Stand Over Height (Lowest Point) | ||||||
| Standover Height | 719 | 750 | 782 | 805 | 825 | 859 |
| Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 522 | 532 | 546 | 556 | 568 | 583 |
| Top Tube (SLACK) | ||||||
| Top Tube (STEEP) | ||||||
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 982 | 999 | 997 | 1008 | 1020 | 1035 |
| Wheelbase (SLACK) | ||||||
| Wheelbase (STEEP) |
