Tecnología
Descripción técnica
Cuadro
Cuadro:

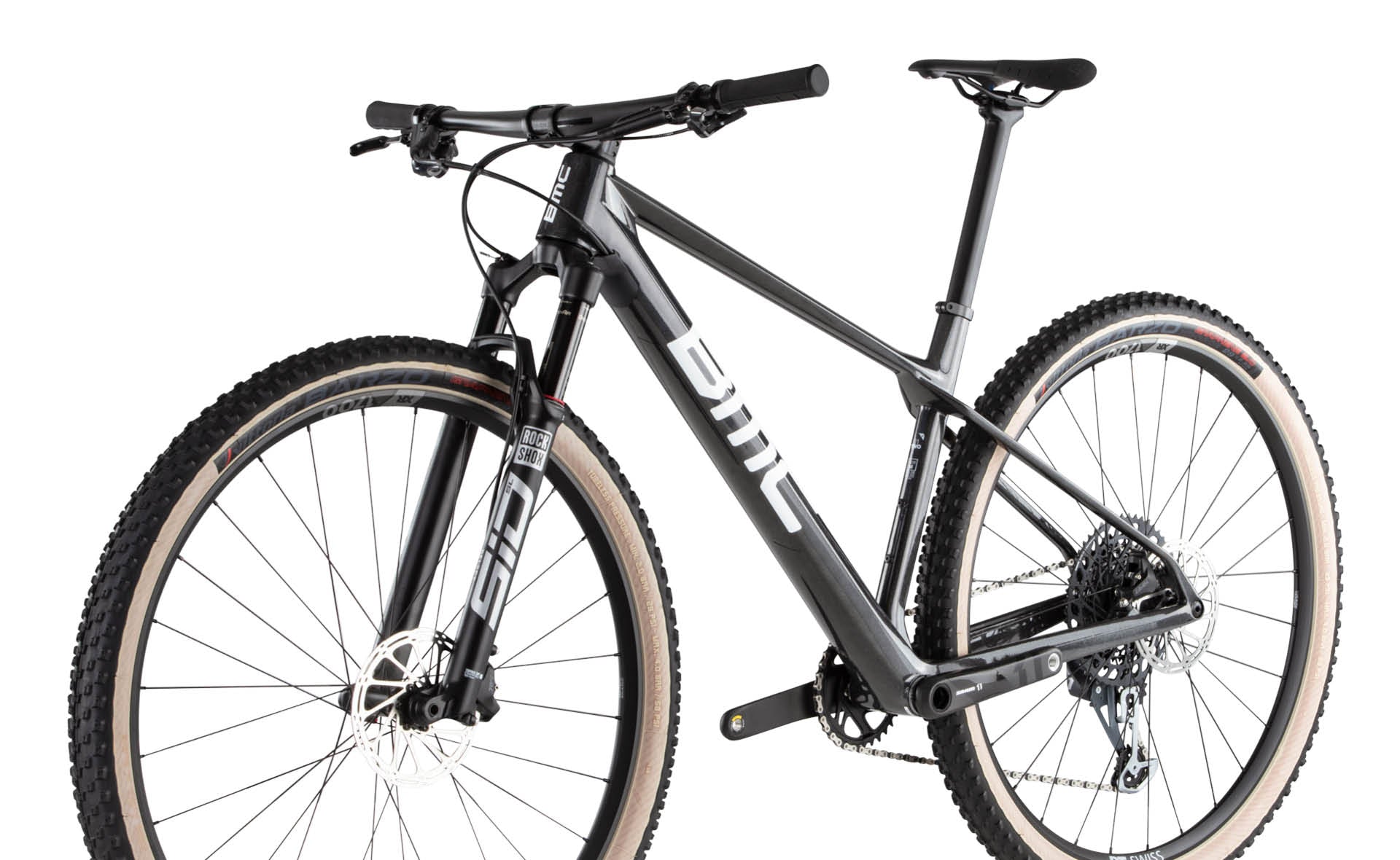

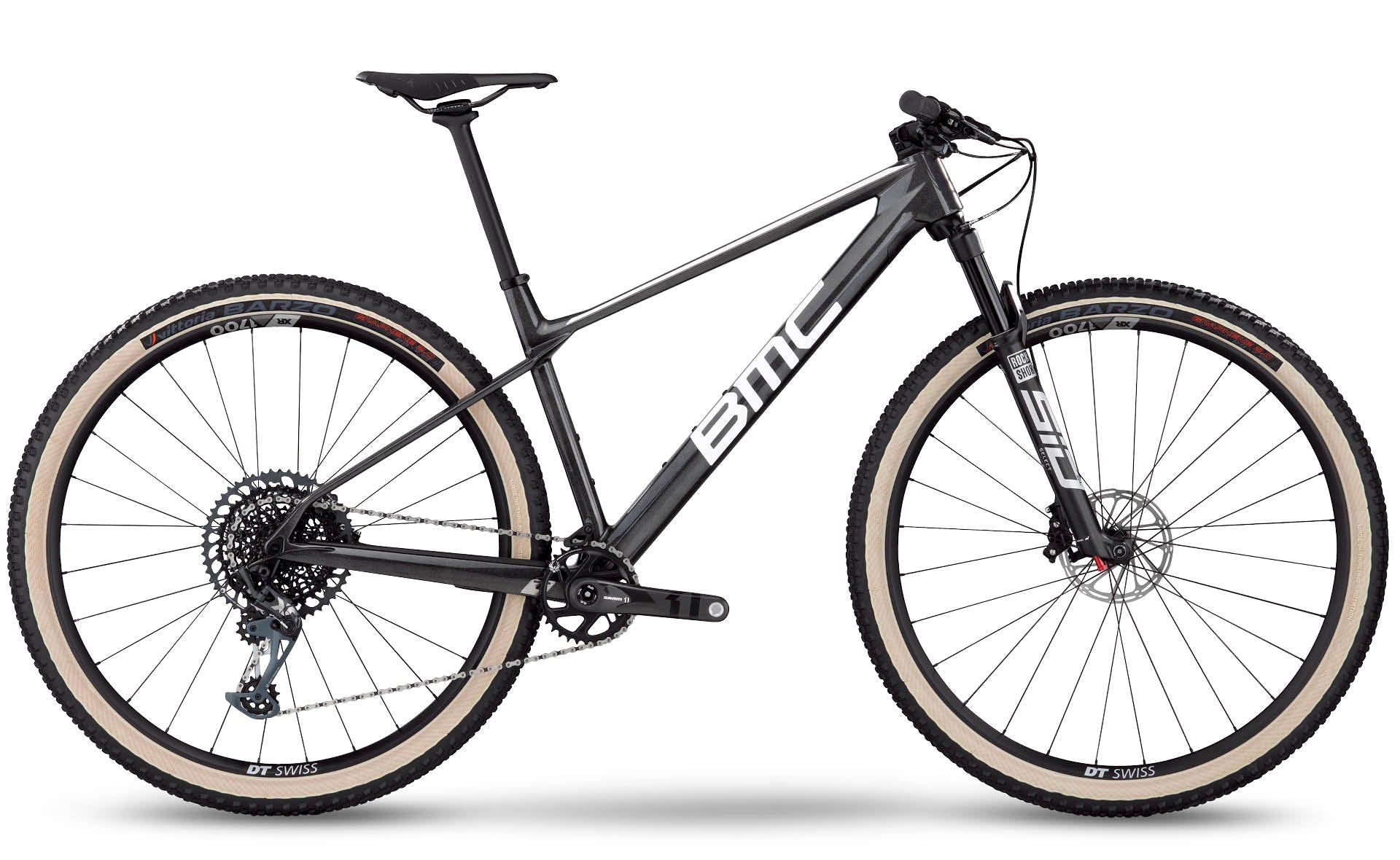

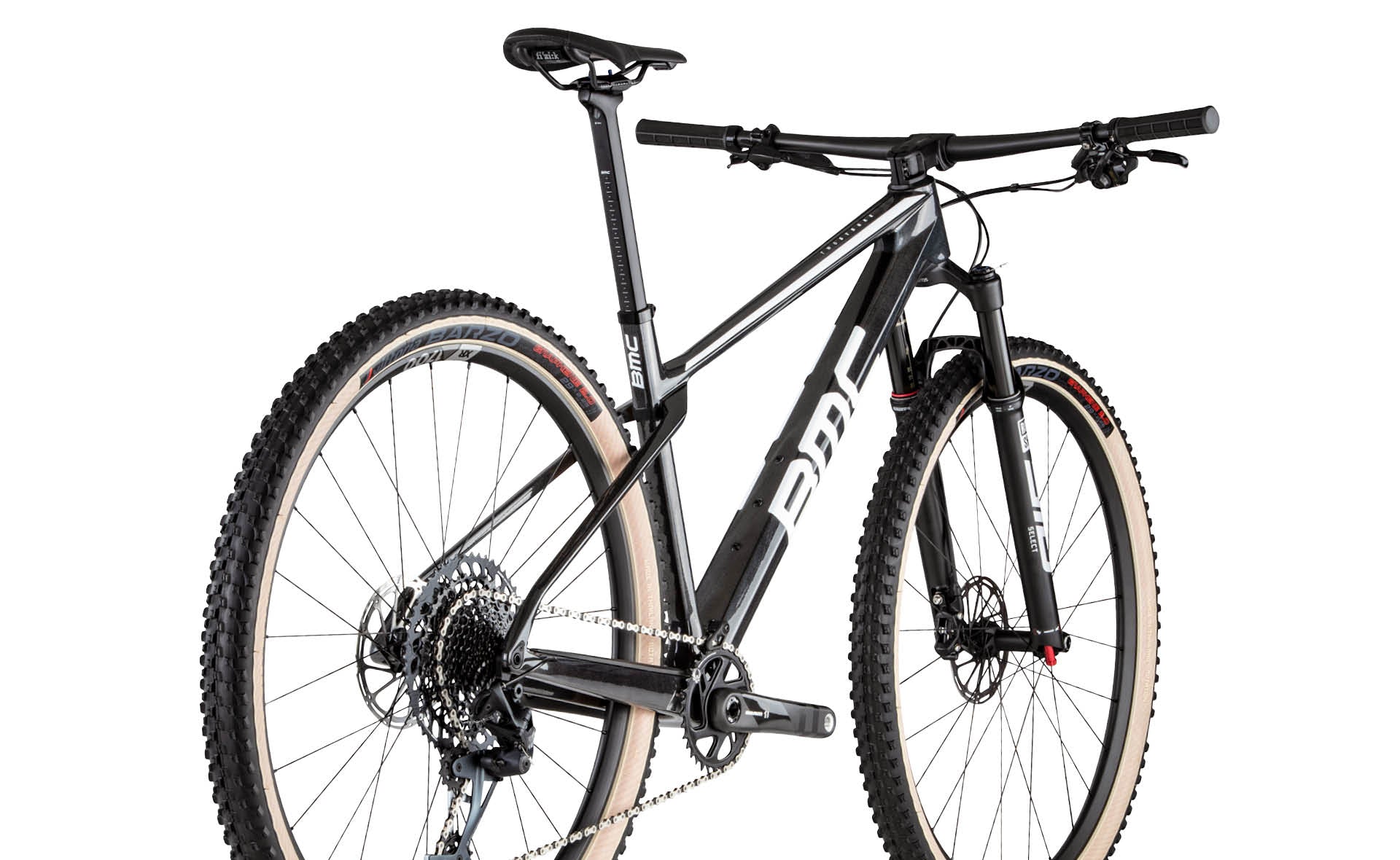

Twostroke 01 Premium Carbon with Tuned Compliance Concept XC | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Suspensión
Suspensión Delantera:
RockShox SID Select
Bloqueo Remoto:
OneLoc Sprint Remote
Cockpit
Potencia:
BMC MSM 01
Manillar:
BMC MFB 01 Carbon | 760mm
Seat
Tija de Sillín:
Twostroke 01 Premium Carbon D-Shaped Seatpost
Sillín:
Fizik Antares R7
Frenos
Pinzas de Freno:
SRAM Level TLM
Discos:
SRAM Centerline
Tamaño del disco:
160 / 160 S-M | 180 / 160 L-XL
Ruedas
Llantas:
DT Swiss XR 1700 | 25mm Inner Width
Bujes:
DT Swiss 350
Neumáticos:
Vittoria Barzo | 2.25"
Información adicional
Paso de rueda:
58mm
Clasificación ASTM:
Level 3
Límite de peso del sistema:
110kg
Size | S | M | L | XL |
---|---|---|---|---|
Rider Height | 162-172 | 170-180 | 178-188 | >188 |
Reach | 422.5 | 445 | 465 | 485 |
Stack | 588 | 598 | 608 | 623 |
Bar Rise | 4 | 4 | 4 | 4 |
Bar Sweep | 8 | 8 | 8 | 8 |
Bar Width | 760 | 760 | 760 | 760 |
BB Drop | 64 | 64 | 64 | 64 |
Crank Length | 170 | 175 | 175 | 175 |
Fork Length | 505 | 505 | 505 | 505 |
Fork Rake | 44 | 44 | 44 | 44 |
Front Center | 696 | 715 | 741 | 767 |
Head Tube | 87 | 93.5 | 106 | 122.5 |
Head Tube Angle | 67 | 67 | 67 | 67 |
Rear Center | 425 | 425 | 425 | 425 |
Seat Angle | 75 | 75 | 75 | 75 |
Seat Tube | 410 | 440 | 480 | 510 |
Seatpost Length | 380 | 430 | 430 | 430 |
Standover Height | 725 | 730 | 735 | 750 |
Stem Angle | -5 | -5 | -5 | -5 |
Stem Length | 50 | 60 | 60 | 70 |
Top Tube | 597 | 618 | 638 | 658 |
Trail | 109 | 109 | 109 | 109 |
Wheelbase | 1112.5 | 1135 | 1161 | 1185 |
