Name: Teammachine SLR Mpc. Frameset
Brand: BMC
SKU: 30007204
Price: 8999.0 USD
Availability: OutOfStock

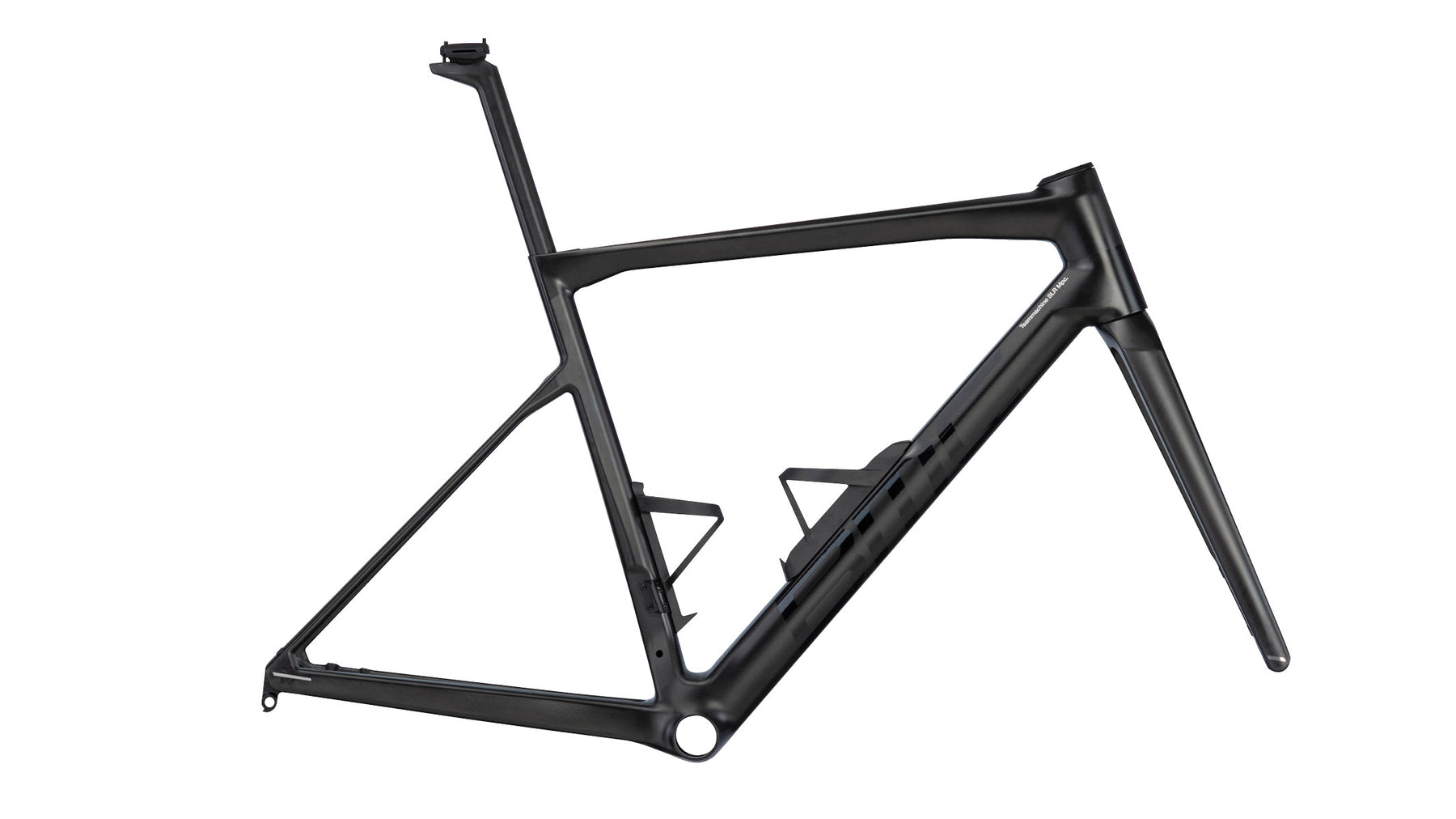

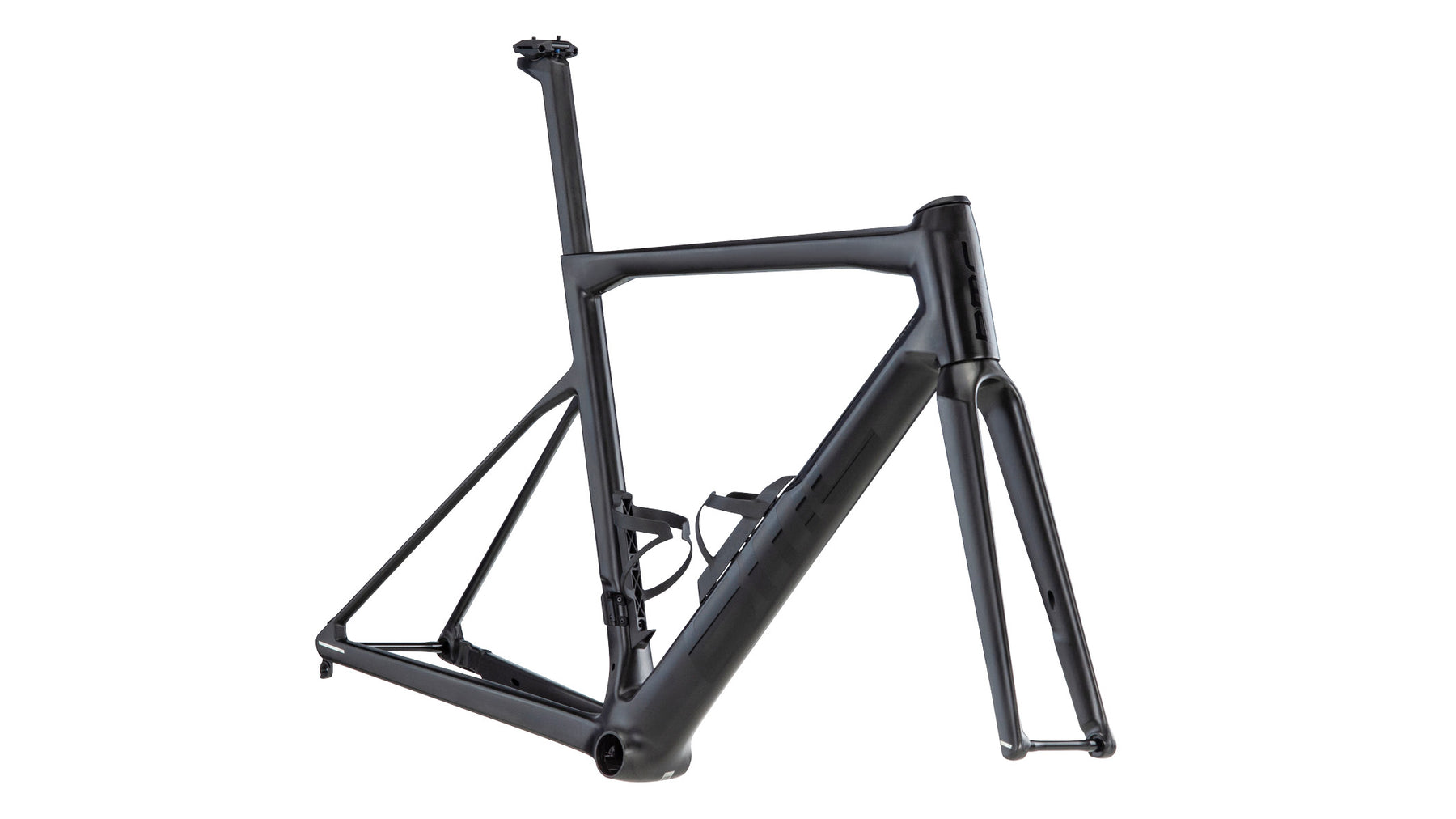

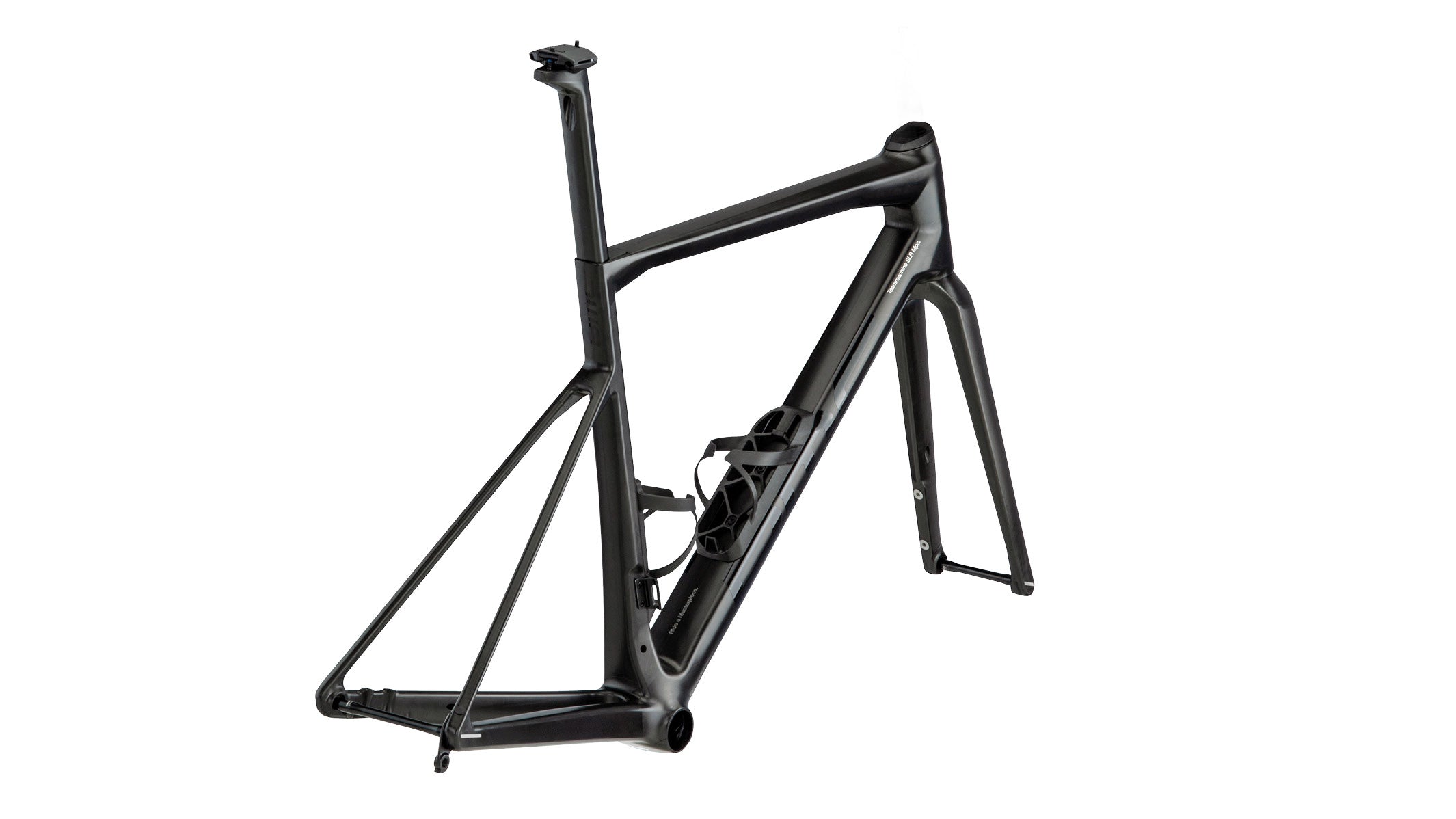

Teammachine SLR Mpc. Frameset

In the quest for ultimate performance, the Teammachine SLR Mpc. knows no limits. Our engineers combined a decade of innovation and development into a class-leading frameset timelessly designed for the future. A Masterpiece.

Stiffness, weight, and performance numbers all exceed those of the most demanding professional riders. There’s simply no quantifiable shortfall.

USD 8,999.00

SKU: 30007204

Size —

Preorder - dispatch may take up to 60 days

Compatible Parts & Accessories

[{"id":41532097429583,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30007203","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR Mpc. Frameset - 47","public_title":"47","options":["47"],"price":899900,"weight":8000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906522240","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41532097560655,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30007204","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine SLR Mpc. Frameset - 51","public_title":"51","options":["51"],"price":899900,"weight":8000,"compare_at_price":null,"inventory_quantity":11,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906522257","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41532097691727,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30007205","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR Mpc. Frameset - 54","public_title":"54","options":["54"],"price":899900,"weight":8000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906522325","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41532097921103,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30007206","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR Mpc. Frameset - 56","public_title":"56","options":["56"],"price":899900,"weight":8000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906522332","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41532098052175,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30007207","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR Mpc. Frameset - 58","public_title":"58","options":["58"],"price":899900,"weight":8000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906522349","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41532098150479,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30007208","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR Mpc. Frameset - 61","public_title":"61","options":["61"],"price":899900,"weight":8000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906522356","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Seat

Seatpost:
Teammachine SLR Mpc Premium Carbon D-Shaped Seatpost | 15mm Offset

Accessories

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
Frame 731 g | Fork 308 g | Seatpost 140 g

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	367	377	386	392	401	409
Stack	506	530	550	565	584	608
BB Drop	69	69	69	69	69	69
Fork Length	368	368	368	368	368	368
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	110	130	145	165	184	210
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	73.5	73.5	73.5	73.5	73.5	73.5
Seat Tube	423	468	504	524	545	574
Seatpost Length	330	380	380	380	380	380
Seatpost Offset	15	15	15	15	15	15
Standover Height	717	752	779	797	817	843
Top Tube	517	534	549	559	574	589
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	1000	1015	1030

BMC Mpc DNA - EN

Pick your own Cockpit

ICS Carbon Aero

ICS Carbon Aero features a progressive aerodynamic shaping with a reduced frontal section to match the drag-reducing design of our performance frames.

Buy Now

ICS Carbon Evo

Allying performance with usability, the ICS Carbon Evo Cockpit is engineered at the sweet spot for performance-oriented riders.

Buy Now

ICS Carbon

ICS Carbon, the first one-piece cockpit in the BMC range with an incredibly low weight, high stiffness with superior performance and aesthetics.

Buy Now

Innovation

Accelerated Composites Evolution Technology + (ACE+)

ACE+ generates thousands of virtual frameset prototypes to reach Stiffness, Weight, Compliance and Aerodynamics targets, to ensure each Teammachine SLR Mpc. is top of the class.

Complete integration

Keeping a sleek, aerodynamic profile, the Integrated Cockpit System puts cables, wires and hoses out of sight and out of mind, so you can concentrate on the road ahead.

Aerocore Design

Each Teammachine SLR Mpc. comes with the new Aerocore system consisting of two superlight carbon cages that seamlessly integrate with the reshaped down tube and seat tube, resulting in significant drag reduction.

D-Shape Seatpost

The optimized design of our signature D-Shape seatpost features a minimalist saddle clamp, resulting in lower weight, while still retaining excellent aerodynamic performance and compliance.
